WS 85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System For Vibrating Screen

Grote Afbeelding : WS 85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System For Vibrating Screen

Productdetails:

Plaats van herkomst:	China
Merknaam:	CHINA HUATAO
Certificering:	ISO9001,CE,SGS etc.
Modelnummer:	HT

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 stks
Prijs:	USD 20-50 per pcs
Verpakking Details:	Houten Doos of Kartondoos
Levertijd:	5-8 WERKDAGEN
Betalingscondities:	L/C, T/T, Western Union, Paypal
Levering vermogen:	100 STKS/MAAND

Contact

Gedetailleerde productomschrijving

Productnaam:	WS85 PU-schermpaneel 12'×24' modulair polyurethaanpaneelsysteem voor trillend scherm	Sleutelwoorden:	PU-schermpaneel, ontwateringsschermpaneel, WS85
Dikte:	20 mm, 30 mm, 40 mm	Materiaal:	Polyurethaan(PU)
kleur:	Oranje, rood, groen, geel	Sollicitatie:	Steengroevescreening‌
Verkopende Eenheid:	Enkel artikel	Pakket:	karton of houten doos
Markeren:	ws 85 pu screen panel , modular pu screen panel , modular ws85 screen panel

WS85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System for Vibrating Screen

1)Description‌ of WS85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System for Vibrating Screen

High-Elasticity WS85 PU Dewatering Screen Plate

Model: WS85-MDI Series
Highlights:
MDI Material: Superior flexibility (-40°C to 80°C tolerance) with steel wire reinforcement.
Energy Efficiency: 1.32 kg/m³ density cuts vibrating motor load by 30%.
Certified Safety: Non-toxic, flame-retardant, and oil-resistant.
Ideal For: Harsh environments requiring chemical resistance (e.g., saltwater ore processing).

Factory-Priced PU Screen Mesh for Linear Vibrating Screens

Model: WS85-300×610 Standard
Specs:
Aperture Options: Square (9mm), round (5–50mm), or slotted (0.1–170mm).
Durability: 8–10× lifespan vs. steel mesh; 3× vs. rubber screens.
Value: Includes 6-month warranty against abrasion or tearing.
Use Case: Cost-effective replacement for mining/aggregate screening.

2) Key Features & Benefits of WS85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System for Vibrating Screen

✅ Durability:	8–10x lifespan vs. steel, anti-abrasion, tear-resistant.
✅ Efficiency:	Self-cleaning, anti-clogging, 30% energy saving.
✅ Customization:	Aperture sizes (0.1–170mm), shapes, modular compatibility.
✅ Certified:	Flame-retardant, non-toxic, ISO-compliant.

3) Specification of WS85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System for Vibrating Screen

Material	steel frame and polyurethane surface
Feature	WS85,Wear-resistant, efficient and easy to install
Thickness	30mm, 40mm, 50mm
Opening size	Slot Width 0.1mm – 2.5mm
Screen Width	305mm, 500mm and 515mm, others can be designed.
Screen length	305mm, 610mm, 650mm, 915mm, 1200mm and 1220mm, others can be designed.
Connection type	WS85
Application	* Mining: Ideal for grading iron ore, copper, limestone, and granite. * Coal Processing: Efficient dewatering and desliming in coal preparation plants. * Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone. * Recycling & Waste Management: Separation of construction debris and industrial waste.

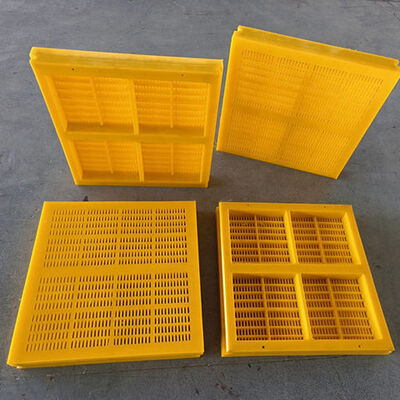

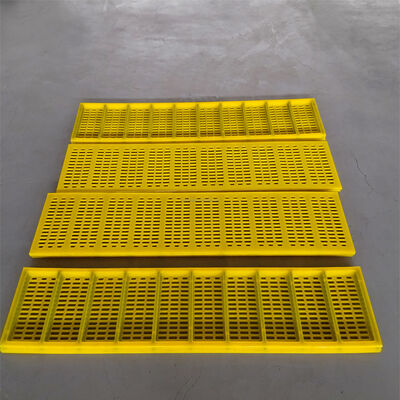

4) Images of Polyurethane Dewatering Screen Panel include:

A close-up of the Polyurethane Dewatering Screen Panel Pin&Legs showing :

WS 85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System For Vibrating Screen 0

5) Working Processing of Polyurethane Dewatering Screen Panel

WS 85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System For Vibrating Screen 4

6). Packaging & Logistics: Wooden box package.

WS 85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System For Vibrating Screen 5

7) Application of Polyurethane Dewatering Screen Panel

WS 85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System For Vibrating Screen 6
