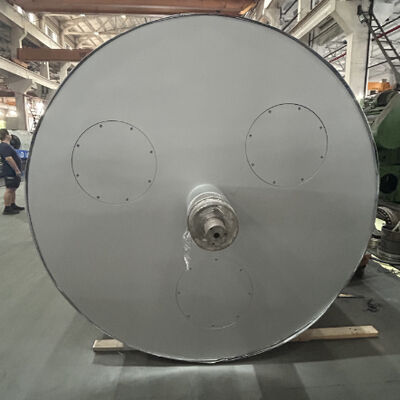

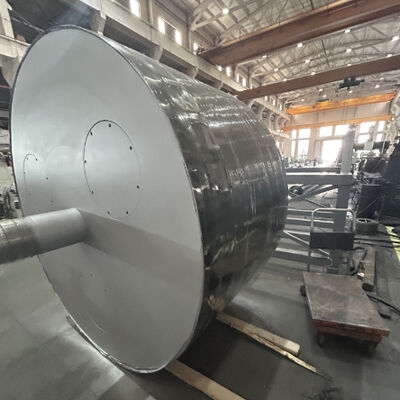

Fast Heat Exchange Rate Chill Roller with 1℃ Surface Temperature Control for Capacitor Film
Product Description
Surface Temperature Control 1℃ Chill Roller with Double Shell Construction for BOPP/BOPET Applications
Chill Roller Basis Information
Chill rollers are essential components in biaxial oriented stretching lines for BOPP, BOPET, BOPA, BOPS, and BOPI films, as well as longitudinal stretching systems. They perform the critical function of cooling and solidifying molten polymers during film formation, ensuring uniform thickness, flatness, and premium quality output.
Our chill rollers feature specialized internal circulation channels designed to maximize thermal conductivity and temperature control precision. This advanced technology can increase casting productivity by 20%-30% while providing consistent thermal regulation - essential for high-speed film production requiring exact material solidification.
Chill Roller Characteristics
- Variable diameter alternating spiral flow channel
- Surface temperature precision ±0.1ºC
- High efficiency heat exchange technology
- High precision dynamic balancing correction
- Premium mirror face processing
- Anti-corrosion treatment of spiral flow channel
- Roller cylindricity and concentricity ≤0.005mm
- Hard chromium plated surface
- Multiple surface treatment options: mirror polished, super finishing mirror, matt, mist, anti-adhesive
- Overall deformation: < 0.05 mm at full load
Technical Specifications
| Component |
Specification |
| Shell |
Double-Shell Construction |
| Flow-System |
Channel between inner/outer tube with welded leading spirals |
| Roller inside treatment |
Anti-rust painting |
| Journal-construction |
Shrinked and welded side disk and shaft (S355 material) |
| Chrome coating |
120μm finished thickness |
| Surface roughness |
0.3 μm |
| TIR |
0.03 mm |
| Cylinder form |
0.03 mm |
Chill Roller Advantages
The casting system is critical in film stretching lines, as final film quality depends on its precision. Our chill rollers are extensively used in high-end European stretching lines, with performance that consistently earns customer approval and positive feedback.
About Huatao Group
Founded in 2008, Huatao Group is a leading supplier of industrial rollers with over 15 years of experience serving paper, corrugated board, rubber & plastic, and nonwoven fabric industries.
Industry Applications
Paper Industry: Forming rollers, vacuum couch rollers, dandy rollers, press rollers, dryer cylinders, calender rollers, and more.
Plastic & Rubber: Chill rollers, MDO rollers, cooling rollers, corona treatment rollers, carbon fiber rollers, and coating drums.
Nonwoven Fabric: Cylinder rollers, doffer rollers, embossing rollers, and cooling rollers.
Committed to innovation and reliability, Huatao Group exports to 96+ countries with an excellent reputation. We understand unique customer requirements and match them with optimal solutions from our network of quality manufacturers.
