Customized Rubber Crownning Soft Calender Roller Oil Circulation

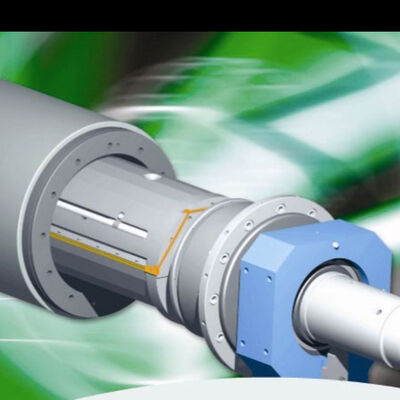

Soft Calender roll comprises a massive steel shaft, steel shell and fixed bearing arrangement on the shaft. The hydraulic hoses are equipped with fast couplings.

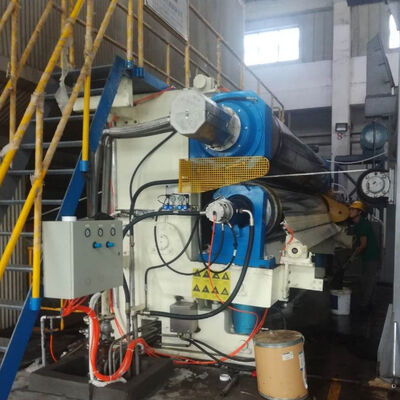

The oil pressure between the shaft and shell automatically controls against linear load to maintain uniform linear pressure distribution through the entire nip. Crown correction of the roll can be manually controlled from the control panel, primarily used in the calender machine of the paper machine line.
Technical Data Sheet of Soft Calender Roller
| Shell material |
forge steel 45# |
| blended face length length |
icustomized |
| Cover width |
customized |
| Cover thickness |
customized |
iak
| Cover hardness |
91±2 Shore D |
| Cover type |
combination CHINA Andritz Jalon Yellow |
| Shell inner |
honing Ra0.4 |
ore
| Roll surface runout |
≤0.02mm |
era
| Metal seals |
Germany |
oner
Ky | Roll balancing |
900 m/min(G1.0) |
Drive/method |
Toothed belt drive AT20,Z=63 |
Bearing of the Soft Calender Roller
- Spherical roller bearing: 2pcs
- Bearing type: SKF/FAG
- Joint ball bearing & Bearing house: 1set
- Drawing supplied by client
- Static test after roll assembly is used to detect leakage
- Max Test pressure: 10bar
- Dynamic simulation after roll assembly is used to detect roll deformation
SO Soft CALENDER ROLLER DIFFERENTIAL PRESSURE REGULATION HEAD
- Function: Regulate Facility the pressure in the Swimming Roll to control the correct deflection.
- Equipment Location: On front side of the Swimming Roll
- Proportion regulation air cell: 1pcs
- Piston rod: 1pcs
- Bearing (INA): 1pcs
- Seal part: Germanyoden
ASSEMBLY TOOL of Soft Calender Roller
- Disassembly and installation tool of swimming roll: 1set
- Guide Sleeve: 1pc
- Guide screw: 1Set contingency}
