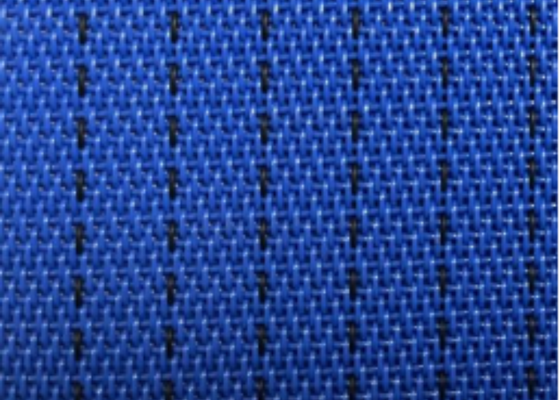

PET Carbon Filament Anti-Static Deaeration Mesh Belt for MDF Particle Board.

Grote Afbeelding : PET Carbon Filament Anti-Static Deaeration Mesh Belt for MDF Particle Board.

Productdetails:

Plaats van herkomst:	China
Merknaam:	HUATAO
Certificering:	CE
Modelnummer:	HT-TQ003

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 st
Prijs:	according to the size
Verpakking Details:	Standaardverpakking exporteren
Levertijd:	7-10 dagen
Betalingscondities:	L/C, T/T
Levering vermogen:	30 stuks per dag

Contact

Gedetailleerde productomschrijving

Model::	HT-TQ003	Riemtype::	Ontluchting gaasband
Gewicht::	1420 g/㎡	Dikte::	1,85 mm
Diameter afwijkingsdraad::	0,68*0,64mm	Inslagdraaddiameter::	0.80 mm
Afwijkingsdichtheid::	14,6 wortels/cm	Inslagdichtheid::	6,6 wortels/cm
Minimale katroldiameter::	50 mm	Aangepast formaat::	Ondersteuning van aangepaste breedte en lengte
Grondstof::	PET + koolstoffilament	Geleidend materiaal::	Antistatische draad van koolstoffilament
structuurtype::	Geweven gaasstructuur	Longitudinale eigenschap::	Flexibele
Transversale eigenschap::	Onbuigzaam	Luchtdoorlaatbaarheid (200 Pa)::	550-580 CFM
Trekkracht::	1800N/2*30cm	Zuur- en alkalibestendigheid::	PH 6-8
Bedrijfstemperatuurbereik::	-30℃ ~ 180℃	Antistatische prestaties::	Ja
Krimpprestaties::	lage krimp	Optioneel verbindingstype::	Flexproof verbinding
Optioneel verbindingstype 2:	Naadverbinding met dubbele lus	Optioneel verbindingstype 3:	mechanische verbinding
Toepasselijk bordtype::	MDF / Spaanplaat / OSB	Compatibele merken:	Siempelkamp, Dieffenbacher, Hymmen
Leveringsvorm::	Factory Direct Supply	De douanedienst::	OEM & ODM aanpassing
Markeren:	PET carbon filament anti-static belt , MDF particle board deaeration belt , industrial anti-static mesh belt

High Performance Deaeration Belt for MDF, Particle Board & OSB Continuous Press Production Lines

Introduction

In the full manufacturing workflow of wood-based panels including MDF, particle board and OSB, the deaeration section is an indispensable core procedure before hot pressing. A qualified deaeration belt undertakes preliminary compaction of wood fiber and wood chips, and rapidly discharges internal air and moisture inside the fiber mat.

During long-term continuous production, the belt bears lasting tension, heat, moisture, resin corrosion and heavy extrusion load. Inferior deaeration belts have uneven air permeability, poor tensile strength and insufficient heat resistance, which easily cause air bubbles, delamination, inconsistent board density, frequent belt fracture and unplanned production downtime, seriously reducing finished board quality and factory output efficiency.

HUATAO’s Deaeration Belt model HT-TQ003 is professionally customized for continuous press lines of all mainstream wood-based panel factories. Woven with PET base yarn and carbon filament anti-static wire, this mesh belt features balanced air permeability, stable dimensional performance, excellent tensile capacity and wide temperature adaptability, perfectly solving common production defects triggered by low-quality ventilation belts.

Product Specification:

Item	Specification
Model	HT-TQ003
Main Material	PET + Carbon filament
Weight	1420 g/㎡
Thickness	1.85 mm
Air Permeability (200Pa)	550 - 580 CFM
Warp Wire Diameter	0.68*0.64 mm
Weft Wire Diameter	0.80 mm
Warp Density	14.6 roots / cm
Weft Density	6.6 roots / cm
Acid & Alkali Resistance	PH 6 - 8
Minimum Pulley Diameter	50 mm
Tensile Force	1800 N/2*30cm
Optional Joint Types	Flexproof / Double-loop seam / Mechanical Joint
Operating Temperature Range	-30°C ~ 180°C

Product Features:

1. Balanced Longitudinal & Transversal Performance

The special weaving structure delivers flexible longitudinal bending and rigid transverse support. The belt will not deform or arch under heavy compression, keeping uniform extrusion pressure on fiber mats all the time.

2. Built-in Carbon Filament Anti-static Design
Embedded carbon conductive wires eliminate static electricity accumulation during material conveying, effectively preventing wood chips and fine fibers from adhering to the belt surface, reducing manual cleaning frequency.

3. Superior Dimensional Stability & Low Shrinkage

High-tenacity PET raw material and fixed weaving craft control shrinkage rate to the minimum. The belt maintains stable width and length under long-time high temperature and humid working conditions, avoiding belt deviation.

4. Uniform & Efficient Air & Moisture Discharge

Consistent mesh structure ensures even air permeability across the whole belt surface. Excess gas and water vapor inside fiber mats can be fully evacuated, fundamentally eliminating board bubbles, layering and uneven density defects after hot pressing.

5. Outstanding Heat & Chemical Corrosion Resistance

Adaptable to working temperature from -30°C to 180°C, resistant to weak acid, weak alkali and residual adhesive corrosion generated in panel production lines, extending the whole service cycle of the belt.

6. Multiple Optional Joint Solutions

Three mature joint processes are available to match different line speed and load requirements, ensuring high joint tensile strength and smooth running without scratching fiber mats.

Applications:

HUATAO Deaeration Belts are widely applied in:

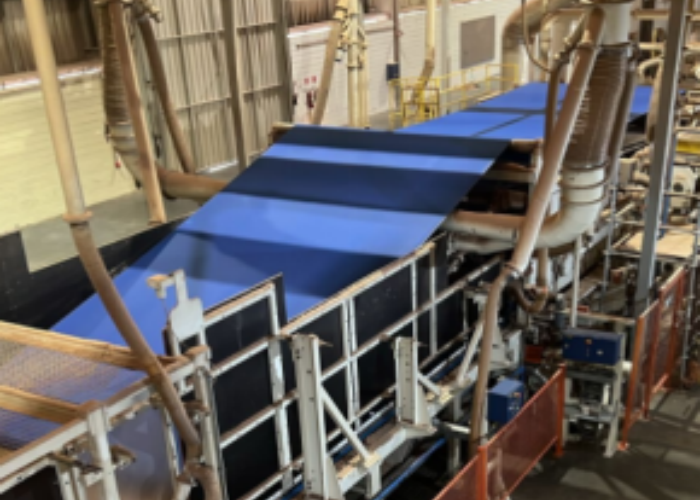

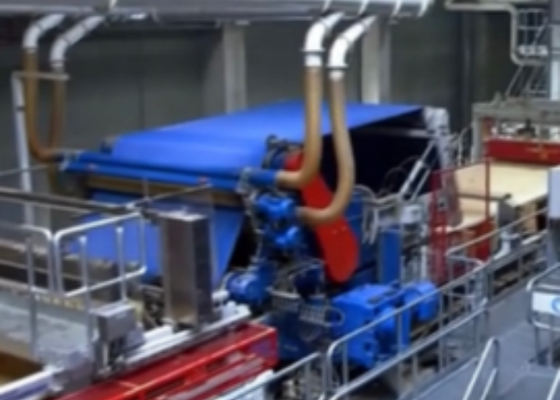

·MDF Continuous Press Production Lines
·Particle Board (PB) Manufacturing Lines
·OSB Board Production Equipment
·Pre-compression & Deaeration Section of Wood-based Panel Lines
Full set continuous press equipment from Siempelkamp, Dieffenbacher, Hymmen and other mainstream international brands.

This deaeration mesh belt is the standard matching consumable for factories focusing on mass continuous production of wood panels, especially plants troubled by board bubbling, high belt wear and frequent shutdown maintenance.

Product Advantages:

Balanced air permeability for uniform deaeration

High tensile strength to resist breakage

Anti-static carbon filament structure

Low shrinkage & stable dimension

Wide temperature resistance range

Acid and alkali corrosion resistance

Multiple customizable joint options

Smooth running without mat damage

Long service life to cut replacement cost

Custom width, length and joint processing available

Strict factory inspection before delivery

Fast lead time for bulk orders

Professional technical support

Production Benefits

·Adopting HUATAO professional deaeration belt brings multiple tangible benefits for panel manufacturers:

·Complete removal of gas and moisture inside fiber mats
·Eliminate bubble and delamination defects on finished boards
·Improve overall density uniformity of wood panels
·Reduce static adhesion of wood chips for less cleaning work
·Stable belt operation lowers tracking adjustment frequency
·Cut consumable replacement frequency and maintenance expense
·Minimize unexpected machine shutdown loss
·Boost continuous line operation efficiency
·Reduce finished board rejection rate
·Improve overall factory production yield

Why Choose HUATAO

As a professional integrated supplier of spare parts for wood-based panel continuous press lines, HUATAO owns mature weaving and joint processing workshops with years of overseas export experience and standardized quality control system.

Our comprehensive service strengths cover:

·Specialized manufacturing experience for panel line conveyor belts
·Independent R&D of mesh belt formula and weaving technology
·Support OEM & ODM customized size and joint types
·Full inspection of air permeability, tensile force and dimension before shipment
·Factory direct competitive pricing without middleman markup
·Stable global delivery schedule for bulk orders
·One-stop technical consultation for belt selection
·Timely after-sales support for installation and operation guidance
